lower supports

MULTIPLE ADJUSTMENTS

FOR YOUR STABILITY

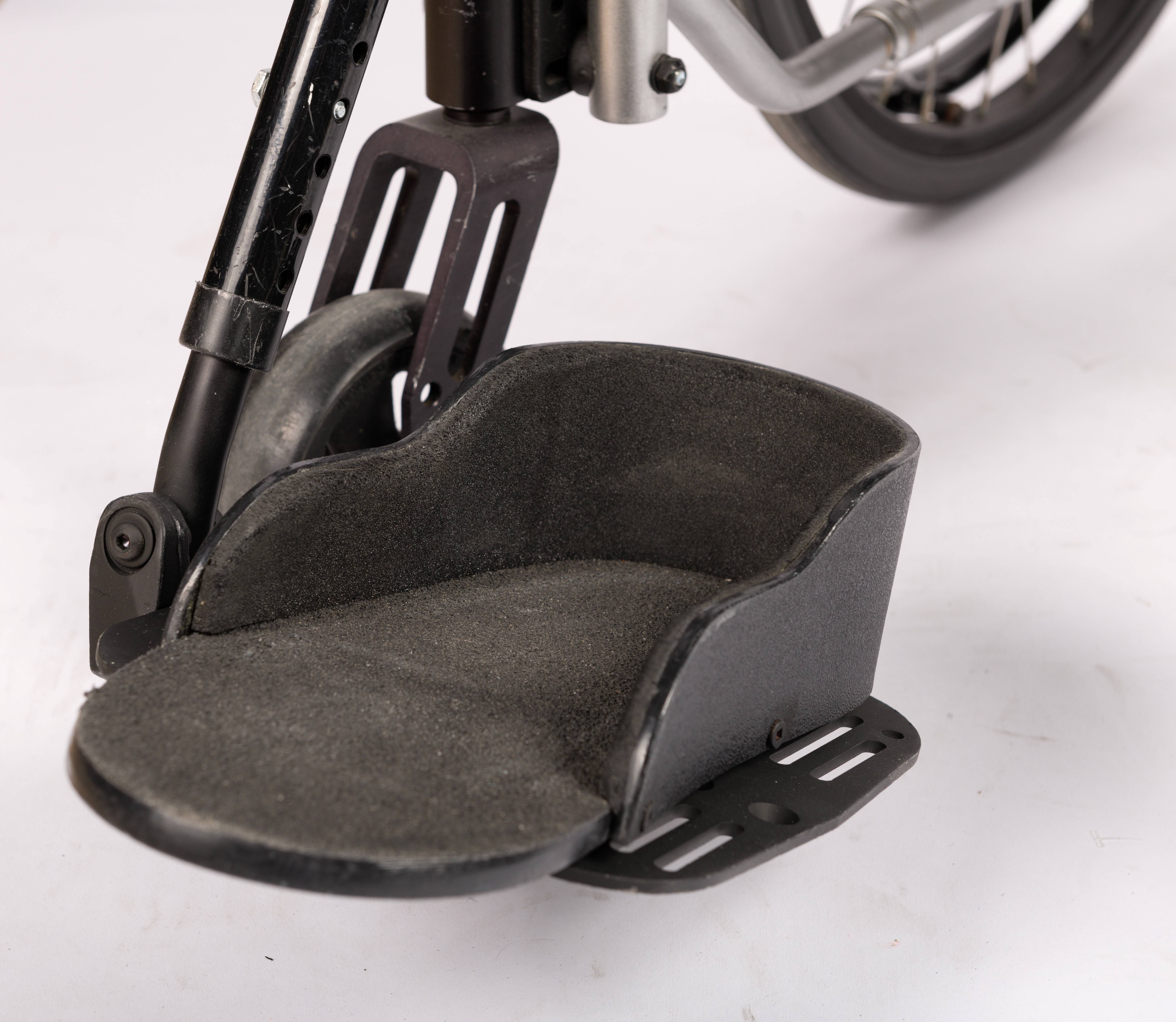

Boot

The support boot allows multiples adjustments according to the user's needs. Installation and adjustment are quick and easy. The boot is attached directly to the footrest of the chair and ensures foot stability and safety for the user.

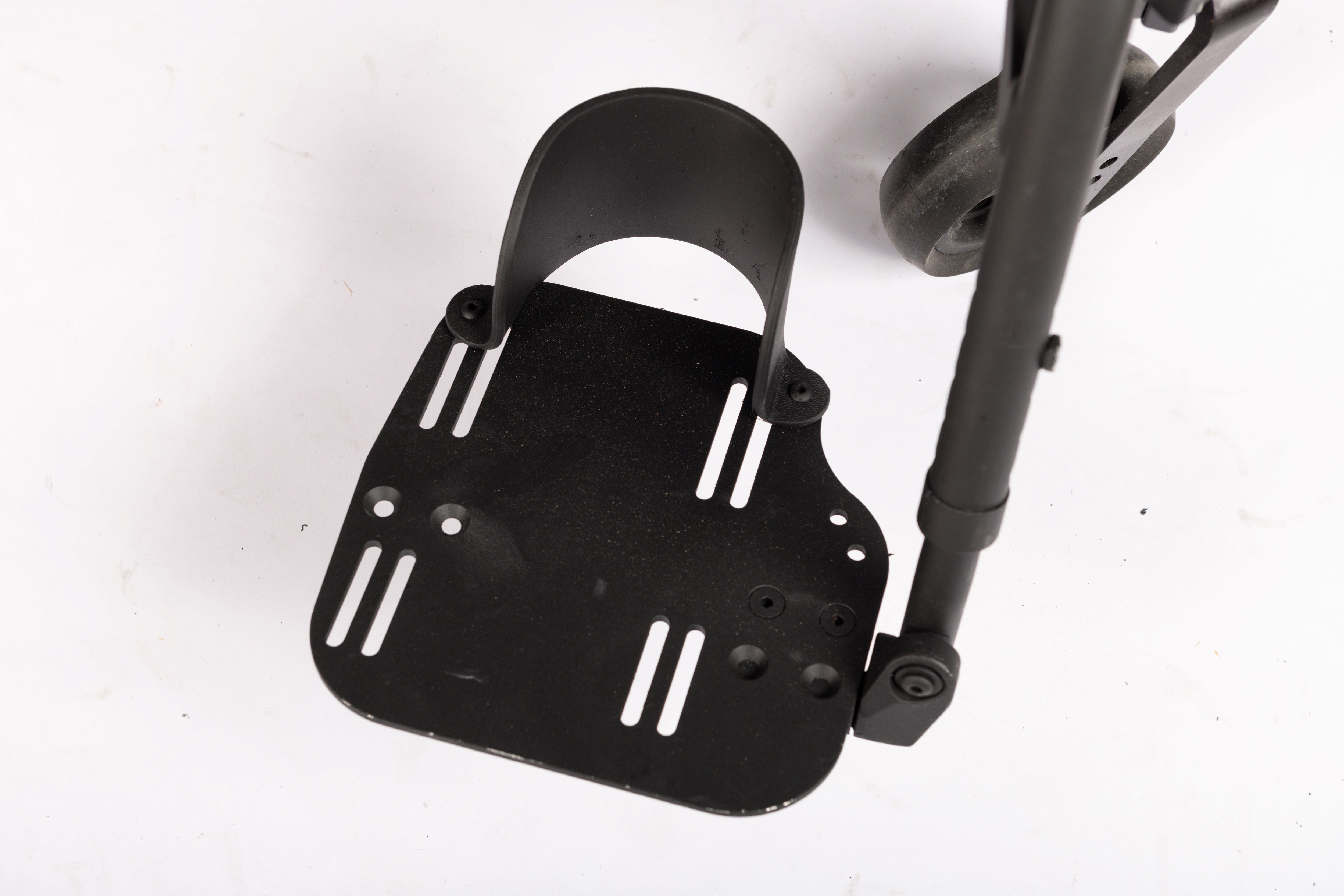

Rigid heel piece

The rigid heel piece allows you to properly position the heel of the foot. Installation is quick and easy. The heel piece is attached directly in place of the fabric heel piece of the chair footrest.

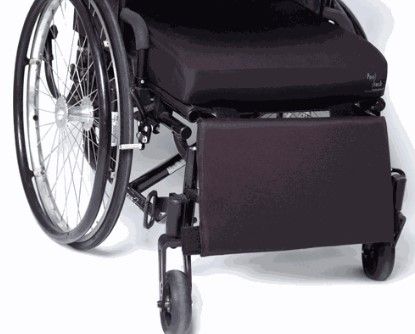

Strap and cushion for calf support

The strap and the calf pad allow multiple adjustments according to the user's needs. The calf support is attached directly to the chair footrest or under the seat. The calf support strap provides comfort and good support for the user's lower limbs.

Odoo • Texte et Image

Boot

  • The boot is made of ABS with a cushioned contour and a non-slip base.

  • The standard size is 4.5" wide X 11" long.

  • The standard border on the heel is 3" high and on the sides 2" high.

  • It is possible to add a strap to the ankle or to make a custom boot.

Rigid heel piece

  • The heel piece is made of 3/16" ABS.

  • The standard border is 3.5" wide X 3" high.

Strap and cushion for calf support

  • The installation of the calf support is maintained by 1.5" straps on the footrest posts of the chair.

  • The calf support is designed with a 1" cushion and a waterproof nylon and stretch fabric cover.

  • The standard size varies between 20" and 25" in width X 11" in height.

Order form

    Download me

Positioning components for the right lower limb (boot and heel cup) :  4565064

Positioning components for the left lower limb (boot and heel cup) :  4565066

Calf support cushion :  4565068



SPECIFIC FEATURE

services

The support boot

Ensures the stability and position of the foot.










services

Rigid heel piece

Fit the heel of the shoe.











services

The calf support cushion

Cushioned belt.
