SUPPORT AND PROTECTOR


CUSTOMIZED TO YOUR NEEDS

FoR YOUR SAFETY

Support for the lower limbs, knees and/or calves. It allows multiple adjustments in height, width and angle. The installation and adjustment are quick and easy, as the support is attached directly to the footrest post in a vertical or horizontal position while allowing the support to be easily retracted if needed.

The protective cushion of the footrest protects the user from any injuries when using a wheelchair. Thus, the cushion envelops the attachment mechanisms of the footrest.




Lower members support

  • Mobilize the lower limbs to the desired position.

  • The installation of the support on the footrest upright allows the knees or calves to be mobilized.

  • The padded support plate is 4 1/2" wide and 7" high.

  • The adjustment of the movement in width in relation to the amount of the footrest is from 0" to 4".

  • The height adjustment of the cushion plate is 4" up or down.

  • The angle adjustment of the cushion plate is 0 degree to 20 degree.

  • Each adjustment is independent of each other.

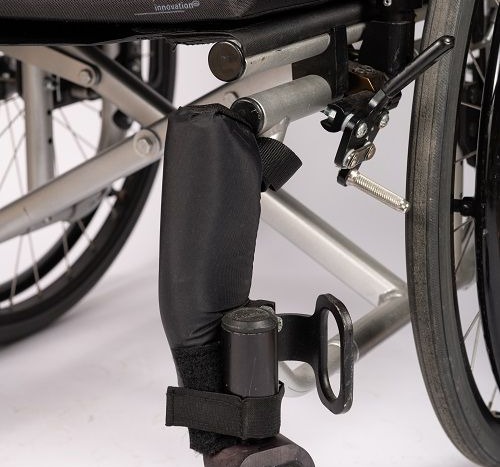

Protective pad for the footrest rods

  • The installation of the protector on the footrest attachment is held by a Velcro.

  • Installation is quick and easy.

  • The protective cushion can be quickly retracted and remain in the chair thanks to the support strap.

  • The protective pad is made of polyurethane foam with nylon cover including a Velcro fastener and a nylon strap.

DOCUMENTATION

Order form (inferior members)

   Download me

Positioning components of the lower right limb (support and protector) : 4565064

Positioning components of the lower left limb (support and protector) : 4565066

SPECIFIC CHARACTERISTIC

services

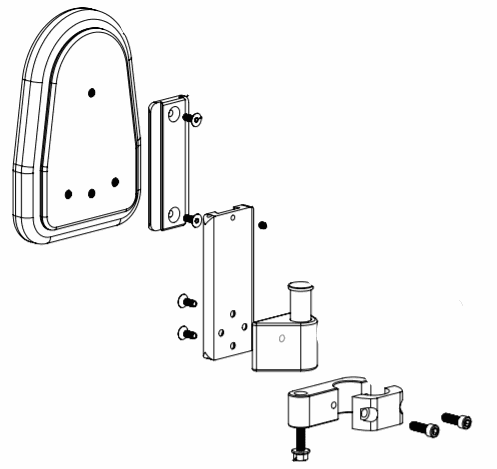

Explosive view of the lower members supports
