ADJUSTABLE OVER TIME

FLEXUS is a unique rigid aluminum frame backrest, available in two universal sizes : adult and child. Its ingenious design allows you to customize the height, width and depth configurations as well as adjust the tilt angle at any time.

The goal is to provide an optimal posture according to the evolution of the physical condition of the wheelchair user.

The comfort, safety and autonomy of the user are assured, as FLEXUS allows the therapist to adjust his or her clinical approach at any time for an optimal result.

All our products can be added to the FLEXUS to make it a very scalable system.

Fabriqué au Québec Logo

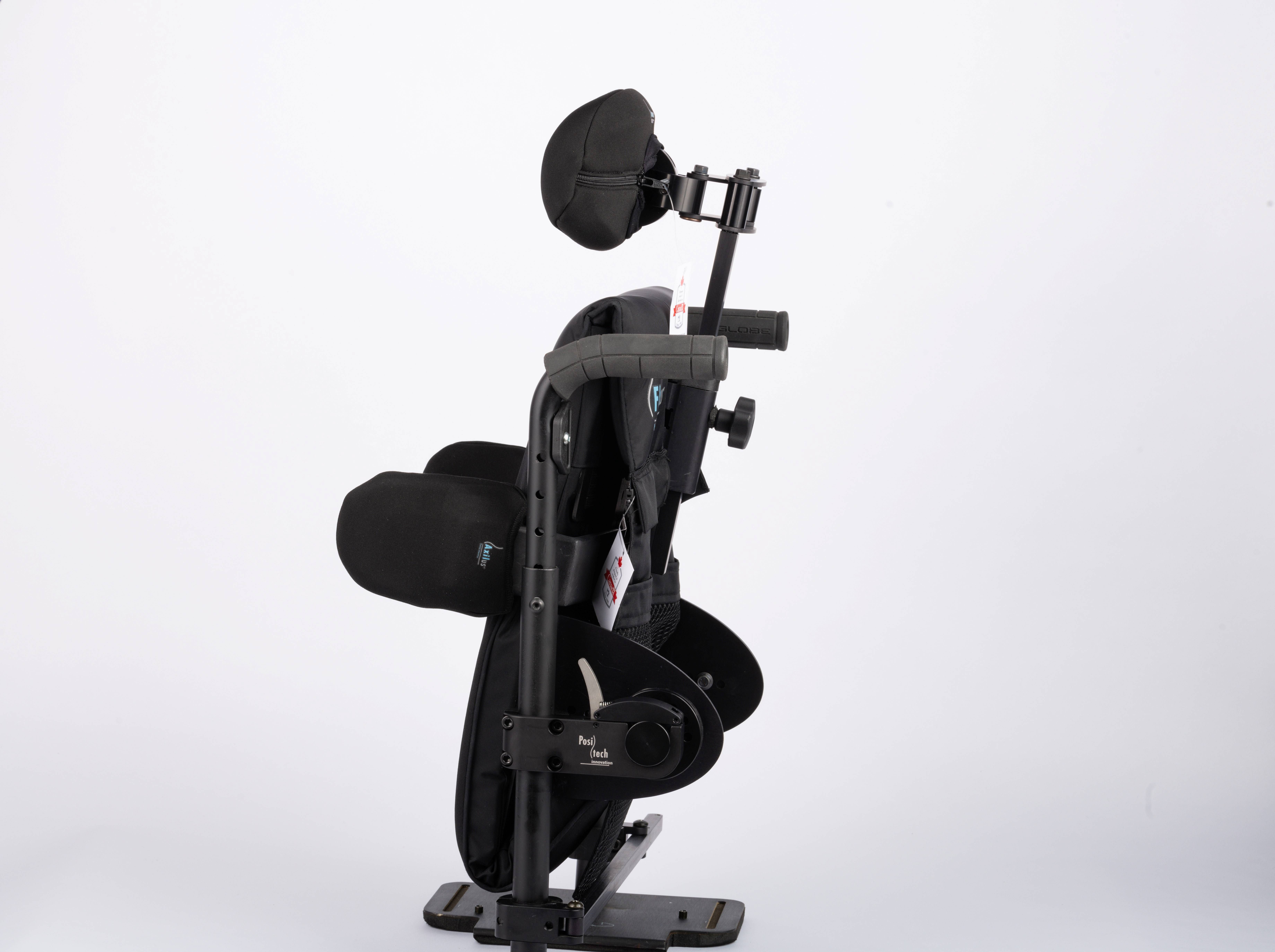

Flexus side

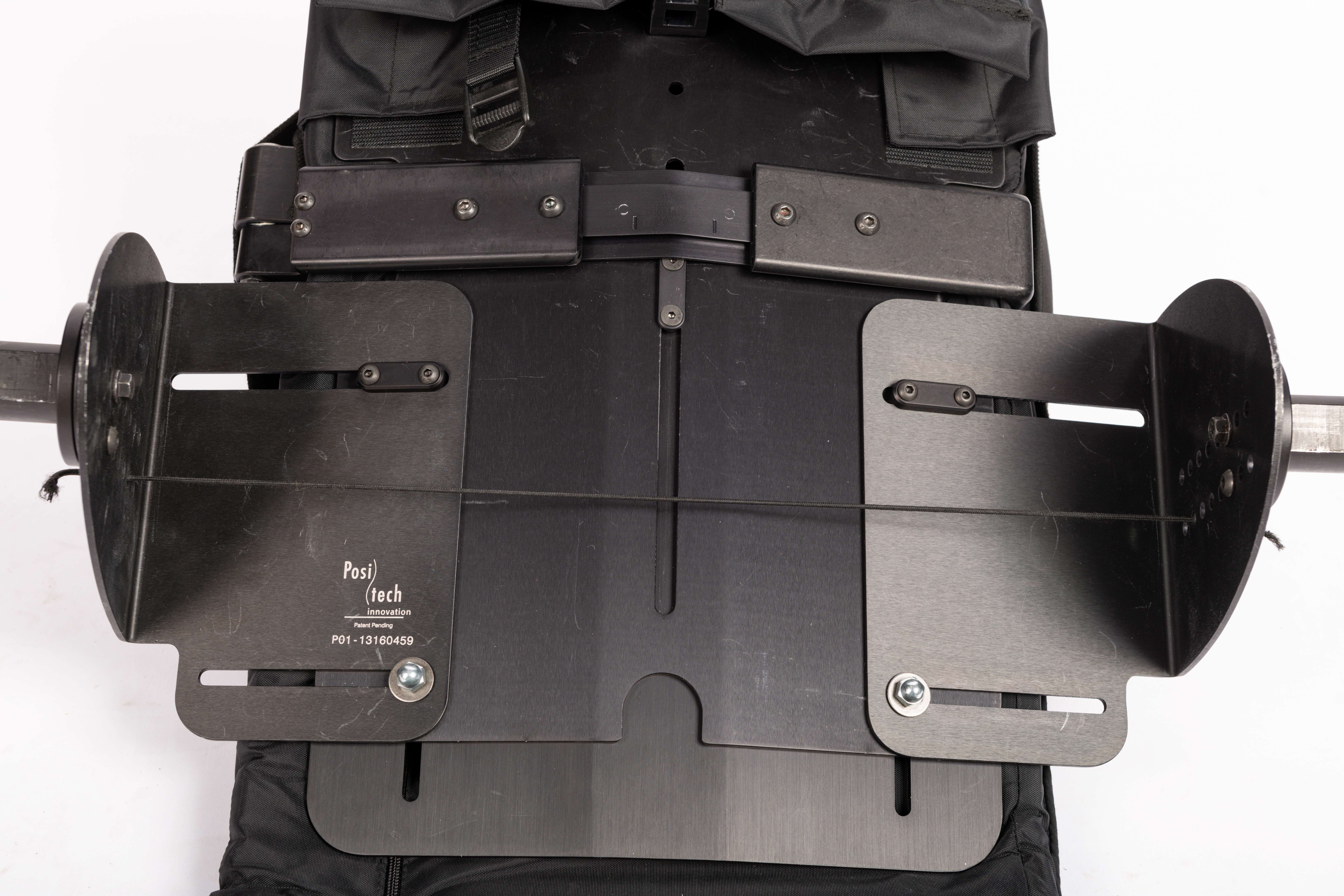

 Flexus mechanism

SPECIFICATIONS

Flexus backrest overview

  • One file format for all sizes.

  • Multiply height, width and angle adjustments.

  • Rigid aluminium frame with comfort foam.

  • Simplifies the work of the operators.

  • Fits all tubular wheelchairs.

Order Form

Flexus

TECHNICALITIES

Adjustable width

Adjustable width



Adult Child
L
Width
 		14''-20''
355-510 mm   		11'' -14''   279-356 mm
LS
Width  		9.5''-  15.5''
241-395 mm   		6.5''-11''
165-279 mm




Flexus backrest width sketch








Adjustable height

Adjustable height




 Adult Child
H
Height 		18''-26''
457-660 mm   		15''- 18''
381-457 mm

Flexus backrest height sketch                           Adjustable sketch Flexus backrest











Distance ajustable

Adjustable AXILUS distance



Adult Child
Hs
Height   		(-) 4.5'' (+)4.5'' -
(-)114 mm (+)114 mm  		(-) 4.5'' (+)4.5'' -
(-)114 mm (+)114 mm

axilus ajustable sketch
